Taig Manual Micro Mills

Manual “Overbuilt” Milling Machines

Taig Manual Micro Mill 2019 Longbed with Hand Cranks and Optional ¼ HP Motor and Included Vise Accessory

The Taig Micro Mill is an “overbuilt” miniature milling machine. The liberal use of steel in its construction affords superior rigidity and the ability to work on hard metals. It is equipped with a 6-speed pulley system, which yields spindle speeds from 525–5,200 rpm on the manual machine, or 1,000–10,000 RPM on the CNC and CNC-ready models.

A manual mill doesn’t require any software, and it’s simple to use; you just crank the handles and watch the calibration dials until you’ve cut away all the extra material. All manual mills come with hand crank handles and dials calibrated in .001″ increments. There are two choices for motors and two choices for bed size.

Taig Micro Mill 2019 Manual Longbed Leadscrew Hand Cranks 1 5 HP Motor Vise RCV 480x576
Taig Manual Micro Mill 2019 Longbed with Hand Cranks and Standard ⅕ HP Motor and Included Vise Accessory

Shortbed and Longbed

The shortbed is 15.5″ long, with a travel of 9.5″ in the x axis. The longbed is 18.4″ long, with 12″ travel in x. The table size is 3.5″ × 15.5″ for the shortbed mills or 3.5″ × 18.5″ for the longbed mills. The longbed is particularly handy if you’re using Taig’s 4th axis attachment, which takes up some space on the bed. Most people think the extra x travel is worth the extra money, but if someone is very tight on space, or only works on very small projects, they might opt for the shorter bed.

You can get the manual shortbed model 2018 or the manual longbed 2019.

You can get the ⅕ hp motor that’s only offered on the manual mills; or you can pay $125 more (before discount) and get the ¼ hp totally-enclosed continuous-duty motor that’s also offered on the CNC and CNC-ready models.

Extended Y Axis

By using a longer ball screw and using prismatic steel bars 3 inches longer than standard, Taig made it possible to add extra travel to the Y axis, which can be critical for certain projects. The standard Y axis travel is 5.5″; this modification extends that to 8″. Much of that extra space is in front of the mill’s bed, so rigging up a mounting plate for the workpiece that cantelievers outward a few inches can give extra support to a wide workpiece.

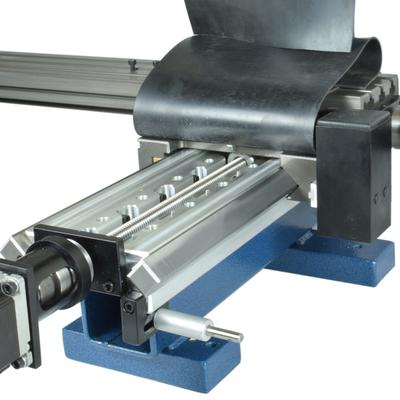

Extended Y Axis Option Installed on a Taig Mill

ER-16 Spindle

An ER-16 spindle is now standard for all Taig mills; the collets are standard and widely available, they have more capacity (up to ⅜″), and are available in metric sizes as well as Imperial.

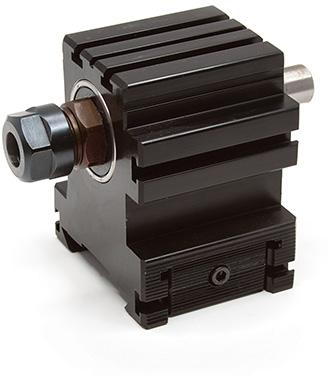

Taig ER-16 Spindle Now Standard on All Taig Micro Mills

Accessories

Taig has a good collection of accessories available for their mills. We sell these accessories only with the purchase of a mill. Some of the most popular accessories are available below once you choose the mill you wish to order. After selecting a mill, be sure to scroll down to the Accessories section at the bottom of the page.

The Milling Vise, shown in several photos on this site, and a 6-piece collet set are included standard with all Taig Mills.

1030 4-Jaw Chuck: This 3¼″ diameter all-steel chuck has 4 heat-treated reversable steel jaws that can move independently and are tightened with an Allen key, allowing square rectangular, octagonal, or round stock to be centered precisely and held firmly. Its internal ¾″-16 tpi threads match the rotary table adapter. If you’re only buying one chuck to use with the rotary table, this is the one we usually recommend. Note: these chucks are only used on certain lathes and the rotary table; their internal threads don’t match the 22mm–1.5mm threads of the ER spindle.

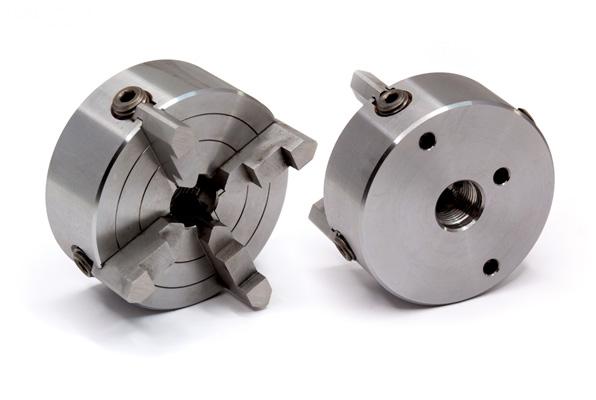

Taig 1030 4-Jaw Chuck Accessory (for rotary table)

1050 3-Jaw Scroll Chuck: This 3-jaw chuck can hold round and hexagonal stock. Its internal ¾″-16 tpi threads match the rotary table adapter. Unlike the 4 jaw chuck, the jaws on the 3-jaw chuck all move at the same time, allowing the user to load and unload parts very quickly, using the supplied “Tommy” bars. The soft aluminum jaws on this chuck can be easily machined for greater concentricity to the rotary table’s rotation, or to fixture special parts. Additional soft jaw sets (part 1151) can be purchased if needed. Note: these chucks are only used on certain lathes and the rotary table; their internal threads don’t match the 22mm–1.5mm threads of the ER spindle.

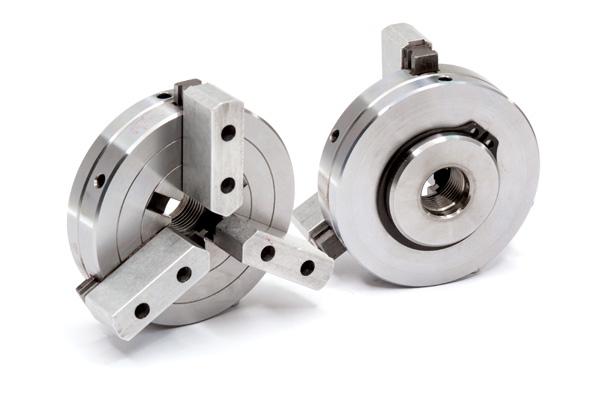

Taig 1050 3-Jaw Chuck Accessory (for rotary table)

1060 4-Jaw Scroll Chuck: This 4-jaw chuck is good for holding square, round, or octagonal stock, and can quickly load and unload parts. Its internal ¾″-16 tpi threads match the rotary table adapter. It holds more firmly than the 3-jaw scroll chuck and its aluminum soft jaws can also be machined for greater concentricity or for fixturing special parts. Additional soft jaw sets (part 1161) can be purchased if needed. Note: these chucks are only used on certain lathes and the rotary table; their internal threads don’t match the 22mm–1.5mm threads of the ER spindle.

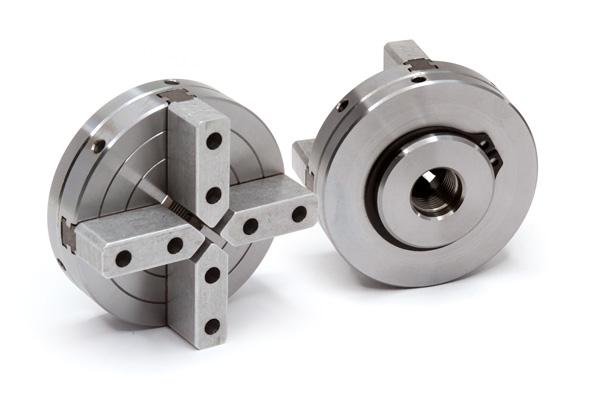

Taig 1060 4-Jaw Chuck Accessory (for rotary table)

Jacobs Chucks: One of the most useful things the mill can do is to drill holes in specified locations. But most drill bits won’t fit in the supplied collets, which come in a limited range of sizes. To hold them, a Jacobs chuck is used. There are four choices in Jacobs Chucks. Along with each, we include an arbor that allows them to be held in the ⅜″ collet.

  • The 1090 “industrial quality” chuck which can hold drill bits from as small as they get up to ¼″ shank diameter.
  • The 1091 “commercial quality” chuck which can hold drill bits from as small as they get up to ¼″ shank diameter.
  • The 1092 “commercial quality” chuck which can hold drill bits from ⅛″ to ⅜″ shank diameter.
  • The 1093 “commercial quality” chuck which can hold drill bits from ⅛″ to ½″ shank diameter.

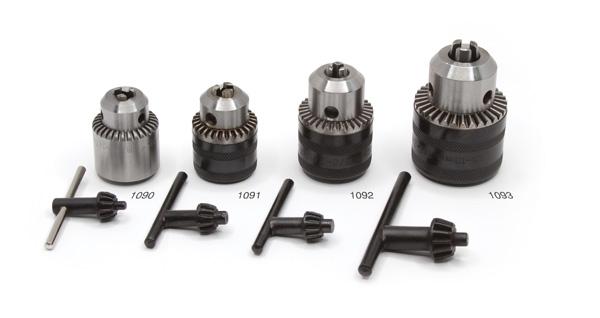

Four Taig Jacobs Chuck Accessories (for drilling)

End Mills: End mills are the tools normally used to cut metal with a milling machine. There are lots of variations in these, but this is a good starter set consisting of five double-ended cutters with flat ends. Sizes are ¹⁄₁₆″   ³⁄₃₂″   ⅛″   ⁵⁄₃₂″   ³⁄₁₆″.

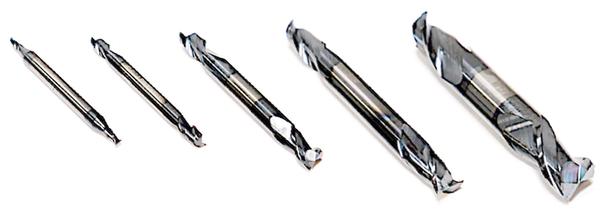

End Mills Set (sold together as a set)

Slitting Saw: Sometimes it’s necessary to make a cut in a piece of material that’s thinner and deeper than an endmill can be expected to accomplish. For this, a slitting saw is used. We sell a high-speed slitting saw along with an arbor that holds it in the ⅜″ collet.

Hi Speed Slitting Saw and Arbor

Fly Cutter: A piece of material may not be flat on top, or it might be desirable to mill the surface down more rapidly than can be done with end mills. For this, a fly cutter is used. It uses a ¼″ square-section cutter to sweep over the material, removing a wide swath at a time.

Fly Cutter (sold separately)

Spindle Wrenches: The ER collet system uses two opposing nuts that tighten the tapered and slitted collet into a tapered recess in the spindle, which compresses it around the tool. For this, two one-inch spindle wrenches are required. We sell this as a set of two wrenches.

Spindle Wrench (sold as a set of two)

Fixture Plate: While a vise is good for holding small parts, sometimes it’s necessary to attach larger ones to the mill bed for machining operations. With this fixture plate, and some 10-32 screws and washers, this is easy to do. This fixture plate is 4″ × 14″ × ⅝″ with holes on 1″ centers, and attaches to the bed of any Taig mill with 9 screws and T-nuts.

Fixture Plate (sold separately)

Edge Finder: When machining parts precisely, it’s helpful to know exactly where the edge of the workpiece is. Using this ¼″ shank edge finder, you can do that without damaging your tool or your part. Just touch off the side of the edge finder to the edge of your workpiece, subtract the .1″ radius of the tip, and you’ve got it.

Edge Finder (sold separately)

Boring Bar Head and Bars: Drilling holes larger than about ⅜″ can require expensive tooling and bog down the mill’s spindle. This boring bar holder, which comes with long and short boring bars, makes this possible for holes up to up to 1½″ diameter. Drill a ⅜″ pilot hole, then insert this tool into the ⅜″ collet and extend the bar incrementally until the hole is the desired size.

Boring Bar Head with Two Boring Bars (sold separately)

Taig Micro Mill 2019 Manual Longbed Leadscrew Hand Cranks XY Stage Only RCV 640x404
Taig Manual 2019 Longbed, Only X-Y Stage Shown

Authorized Dealer

We’re an authorized dealer for Taig Tools products and can offer these and other products found on the Taig Tools site, including any accessories when purchased with a mill, for 10% off list price. (This offer is limited to customers in the USA.) Please email us for pricing on any Taig Tools products, accessories, or lathes that aren’t featured here. We also can sell these tools to customers worldwide — call or email us for a shipping quote to your location.

Manufacturer: Taig Tools

Versions Sold

    Click one or many checkboxes below to filter choices. Click the info ⓘ icon next to a checkbox to scroll for info about that option.

2018 Manual Taig Mill

⅕ HP Motor, Shortbed, Leadscrews, Hand Cranks

List Price: $835

Our Price: $751

2018 Manual Taig Mill with Upgraded Motor

¼ HP Motor, Shortbed, Leadscrews, Hand Cranks

List Price: $960

Our Price: $864

2019 Manual Taig Mill

⅕ HP Motor, Longbed, Leadscrews, Hand Cranks

List Price: $970

Our Price: $873

2019 Manual Taig Mill with Extended Y

Extended Y, ⅕ HP Motor, Longbed, Leadscrews, Hand Cranks

List Price: $1040

Our Price: $936

2019 Manual Taig Mill with Upgraded Motor

¼ HP Motor, Longbed, Leadscrews, Hand Cranks

List Price: $1095

Our Price: $985

2019 Manual Taig Mill with Upgraded Motor and Extended Y

¼ HP Motor, Extended Y, Longbed, Leadscrews, Hand Cranks

List Price: $1165

Our Price: $1049

Add Accessories

1030 4-Jaw Chuck

3¼″ diameter self-centering; 22mm × 1.5mm thread mount jaws that are adjusted independently in pairs.

Reversable range from ⅛ to 3¼″. These chucks are only used on certain lathes and the rotary table.

List Price: $75

Our Price: $67

1050 3-Jaw Scroll Chuck

3¼″ diameter self-centering scroll chuck with reversable aluminum soft jaws and a steel body; ¾ – 16 thread

This is the easiest chuck to use as the jaws all move at the same time. These chucks are only used on certain lathes and the rotary table.

List Price: $70

Our Price: $63

1060 4-Jaw Scroll Chuck

3¼″ diameter self-centering scroll chuck with aluminum soft jaws and a steel body; ¾ – 16 thread

These chucks are only used on certain lathes and the rotary table.

List Price: $76

Our Price: $68

1090 Jacobs Chuck with Arbor

Very small to ¼″ shank diameter; “Industrial Quality”

List Price: $53

Our Price: $48

1091 Jacobs Chuck with Arbor

Very small to ¼″ shank Diameter; “Commercial Quality”

List Price: $23

Our Price: $21

1092 Jacobs Chuck with Arbor

¹⁄₁₆ to ⅜″ shank diameter; “Commercial Quality”

List Price: $24

Our Price: $22

1093 Jacobs Chuck with Arbor

⅛ to ½″ shank diameter; “Commercial Quality”

List Price: $30

Our Price: $27

1230 End Mills Starter Set

Five double-ended cutters with flat ends

¹⁄₁₆″   ³⁄₃₂″   ⅛″   ⁵⁄₃₂″   ³⁄₁₆″

List Price: $58

Our Price: $52

1111 Hi Speed Slitting Saw with Arbor

Arbor is for ⅜″ Collet

.032 × 2½″ diameter

List Price: $21

Our Price: $19

1224 Fly Cutter

Left hand tool bit included

1¼ to 2½″ diameter, ¾″-16 thread mount

List Price: $20

Our Price: $18

1310 1″ Spindle Wrenches, Set of Two

List Price: $15

Our Price: $14

2010 Fixture Plate

For short and longbed mills

4″ × 14″ × ⅝″ dimensions. 56 10–32 holes on 1″ centers.

List Price: $65

Our Price: $59

2035 Boring Bar Head with Long and Short Boring Bars

Adjustable to Create Holes from ⅜″ up to 1½″ in diameter

Boring head has ⅜″ shank.

List Price: $50

Our Price: $45

2228 Edge Finder

¼″ Shank and .1″ Tip Radius

List Price: $15

Our Price: $13
